Photodiode transimpedance. A switch allows the output signals sign to be set based on the connected photodiodes polarity ag or cg. The transimpedance amplifier tia is a useful circuit that allows the circuit designer to turn light hitting a photodiode into an output voltage. Photodiodes generate a current proportional to the light that strikes their active area.

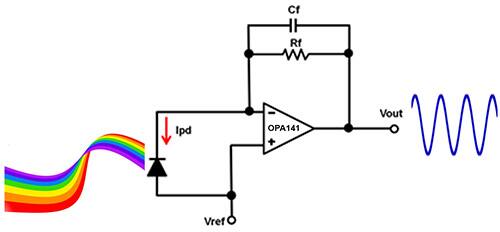

How to design stable transimpedance amplifiers for automotive and medical systems transimpedance amplifier signal gain. Photodiodes and their associated transimpedance or pre amplifiers are the bridge between light and a useful output voltage. Are pushed apart and.

Transimpedance amplifiers are commonly used to amplify the light dependant current of photodiodes. Supporting data rates from 155 mbps to 111 gbps our transimpedance amplifiers are ideally suited for data communications and telecommunications applications supporting lay p. Analog devices optical transimpedance amplifiers offer a complete high performance single chip solution for converting photodiode current into a differential voltage input.

Junction capacitance variation with reverse voltage. The datasheet of the photodiode contains many useful bits of information such as. Most measurement applications involve using a transimpedance amplifier to convert the photodiode current into an output voltage.

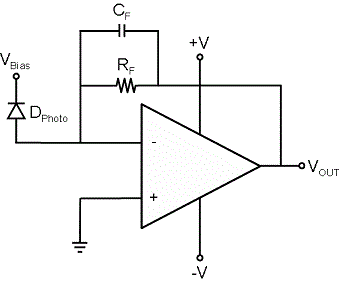

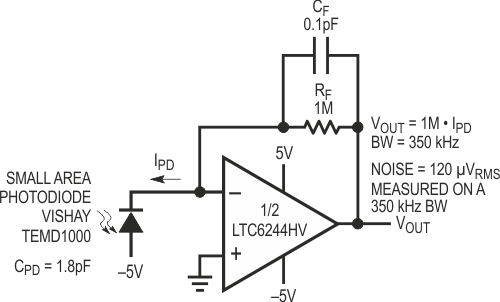

In its simplest form a transimpedance amplifier has just a large valued feedback resistor r f. Figure 1 shows a simplified schematic of what the circuit could look like. The transimpedance amplifier presents a low impedance to the photodiode and isolates it from the output voltage of the operational amplifier.

7 n inside the photodiode. These circuits are deceptively simple. The proper design of a single supply photodiode amplifier requires the consideration of many factors including stability and input and output voltage range limitations.

Sma mounted photodiodes can be connected directly using a ca2824 cable. Each transimpedance amplifier has an in line box design with two female bnc connectors and is intended to be used between two bnc cables. The transimpedance amplifier circuit consists of a photodiode.

Though they are fundamental elements designing the circuitry necessary for precision instruments presents a multi dimensional set of problems and requires particular attention to parameters such as phase margin. The devices are powered through a micro b usb port using the included 5 v 2 a power supply or any other available usb port. Dark current this is the signal that is present in the absence of light.

To find the amplifiers open loop gain curve. With this circuit in your toolbox you will be significantly closer to being able to design more advanced circuits such as servomechanisms.
